Description

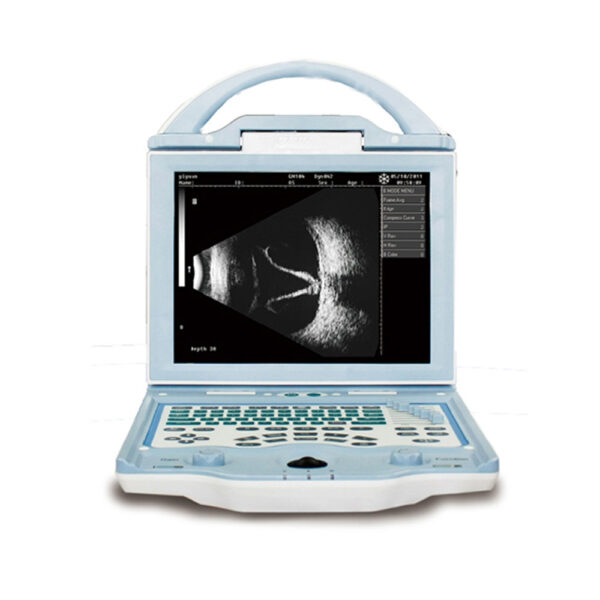

Ophthalmological Ultrasound Scanner with A/B Mode CAS-2000C
Abundant data storage
Built-in 16GB D disk can store data, images, and reports
USB Support U disk, software upgrade, and one-key storage
DICOM3.0 Network port makes data transmission easily
Practical workstation
The system comes with simple, practical,easy-to-work software to print and manage data
Report-print,screen copy,IOL report,case reports with images
A scan parameter
1. 10MHz with Fixation Red Light
2. Resolution:0.01mm
3. Accuracy:±0.1mm
4. Measuring Range:15~40mm
5. Measuring parameters: ACD, Lens, Vitreous body, AL
6. Measuring method: Contact and Immersion
7. Modes: Support Normal, Cataract, Aphakic and Special eye model
8. IOL formulas: SRK-T、SRK-Il、BINKHORST、HOLLADAY， HOFFER-Q HAGGIS Save up to 100 groups of results
Standard configuration
Main unit
1. 10MHz Mechanical sector B probe
2. 10MHz A probe
3. Footswitch
4. Network cable
5. Workstation software
B scan parameter
1. 10MHz probe,10 frames/sec
2. Scanning Angle:53*
3. Gain:0~120dB adjustable,8 steps manually adjustable
TGC
4. Distance, circumference, area, volume, and angle measurement
5. Pseudo-color:8 kinds
6. Cineloop:128 frames, measurement available
7. Post processing:8 groups of curves
Optional configuration
Battery, Video recorder, Immersion shell
