Description
Model:HQ-460DY
Brand:–
Country of origin:–
HQ-460DY Microfiche Enlarger Printer
Introduction

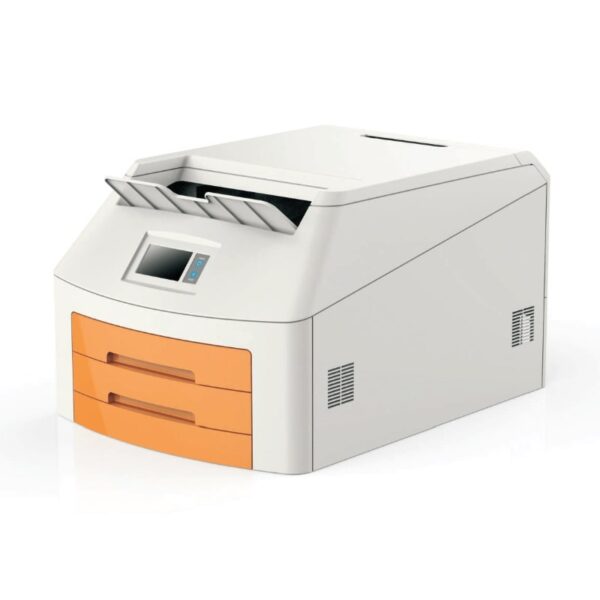

The Dry Imager is a thermo-graphic film processor designed to copy and send images through DICOM network protocol.
It uses the latest direct dry thermal imaging technology which accommodates a full range of modalities including CT, MRI, DR, CR,
Digital Gastrointestinal, Nuclear Medicine, Mobile X-ray Imaging, and Dentistry. etc. The Dry Imager dedicates to precision in diagnosis
with its outstanding image quality and offers affordable imaging catering to your needs
Specification：
| Print Technology | Direct thermal(dry, daylight-load film) |
| Spatial Resolution | 320dpi(12.6 pixels/mm) |
| Throughput | 14＂x17＂≥70 sheets/h； 8＂x10＂≥90 sheets/h |
| Grayscale Resolution | 14 bits |
| Film Transferring Method | Rubbing |
| Film Tray | One supply tray, 200-sheet capacity total |
| Film Sizes | 8″*10″,10″*12″,11″*14″,14″×17″ |
| Applicable Film | Medical Dry Thermal Film( blue or clear base) |
| Interface | 10/100/1000 Base-T Ethernet(RJ-45) |
| Network Protocols | Standard DICOM 3.0 connection |
| Image Quality | Automatic calibration using a built-in densitometer |
| Control Panel | Touch Screen, Online Display, Alert, Fault, and Active |
| Power Supply | 100-240V AC 50/60Hz 600W |
| Weight | 50KG |
| Operating Temperature | 5℃~35℃ |
| Operating Humidity | 35%~85% |
| Storage Humidity | 30%~95% |
| Storage Temperature | -22℃~50℃ |
| Base Holding | Optional |
| Printer Package | 84*71*61CM; 70KGS; 0.36CBM |
Optional Film
Film size:14″*17″,11″*14″,10″*12″,8″*10″(MOQ:500PCS/Size)
Film Package：
14″*17″：50*19*59CM; 26KGS; 0.056CBM
11″*14″：50*19*59CM; 24KGS; 0.056CBM
10″*12″：50*19*51CM; 15KGS; 0.048CBM
8″*10″：50*19*51CM; 11KGS; 0.048CBM
