High Frequency Mobile Digital C-arm System AG-D700A

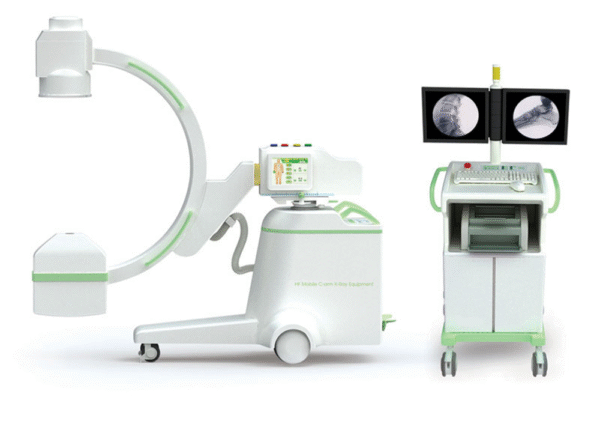

AG-D700A High-Frequency Mobile Digital C-arm System

Specification:

I.Application

This machine is widely applied in the surgical departments, orthopedic surgery, urinary surgery, Spinal surgery, abdominal surgery, Pain Management, Cardiology, Gastroenterology dept., gynae, and operating room, etc.

II. Features

1. High-frequency generator with Super High Power and micro-focus, optimizes digital images.
2. Leading world-class continuous pulse fluoroscopy, intelligent exposure control, achieving extremely low radiation dose.
3. Multi-working patterns to meet various clinical needs.
4. Multi-leaf and vertical light control reduce the soft X-ray effectively and the skin dose dramatically.
5. Imported well-known image intensifier and digital CCD camera provide high-quality and high-resolution images.
6. High-resolution and dual medical LCD monitors improve image quality dramatically.
7. Powerful digital graphic workstation with standard configuration of DICOM 3.0 connected to network perfectly, supports dual registrations of Worklist registration and manual registration.
8. Workstation has high-capacity digital storage function, and fluoroscopy and digital spot film are stored in lossless digital format. It has powerful processing capabilities like edge enhancement, multiple image, gamma correction, cineloop, Window center-window width, record etc.
9. Four-dimensional electric motion control, accurate positioning, flexible and smooth; large rack design provides a huge space and more comfortable surgery environment.

10. Two panels of human graphical LCD touch screen, intelligent and fast operation; Dual kinetic control system and double foot brake design for exposure, meeting the demands of clinical operations greatly.

III. Configuration

Electrical Performance

Technical Parameter

Electrical Performance

High-Frequency Inverter Power Supply: Output Power: 6.0kW, Inverter Frequency:60kHz

Automatic/ Manual Continuous Fluoroscopy:

Tube Voltage:40kV～125kV     continuous adjustment
Tube Current:0.3mA～4mA      continuous adjustment

Automatic/ Manual Enhanced Fluoroscopy:

Tube Voltage:40kV～125kV     continuous adjustment
Tube Current:0.3mA～8mA      continuous adjustment

Radiography

Tube Voltage, mA:  40kV～125kV,120mA

X-ray Tube

X-ray Tube Special For High-Frequency:

Rotary Anode Focus: 0.3/0.6mm

Anode Thermal Capacity:212kJ

Image System

1. Image Intensifier: TOSHIBA 9″ image intensifier
2. CCD Camera: Medical Mega-pixels digital CCD camera
3. CCU: Real-time collection, horizontal,vertical mirror image,recursive noise reduction can be adjusted continuously, multi-images storage,image patching, last image freeze
4. Monitor: 19″ LCD monitor
5. Work Station: Software Storage without damage, multi-images display,image W/L real-time adjustment, grayscale switch,region of interest balance, GAMMA correction,flip, noise reduction, intensifying, smoothing,sharpening, compression, zoom in, measurement,
remark, picture-text typeset print, expert template,DICOM image transmit, DICOM image print, cine loop,image imprinting, Worklist registration, etc.

Structure Performance

Direction Wheel, Main Wheel:

Direction wheel 360°rotation, main wheel ±90°rotation

C-arm

1. Motorized forward and backward movement: 200mm
2. Motorized rotation around horizontal axis: ±180°
3. Motorized slip-on orbit: 120°(+90°～ -30°)
4. Motorized ascending and descending of pillar: 400mm
5. Rotation around vertical axis: ±15
6. SID:1060 mm  Open:860 mm    Arc depth:700 mm
