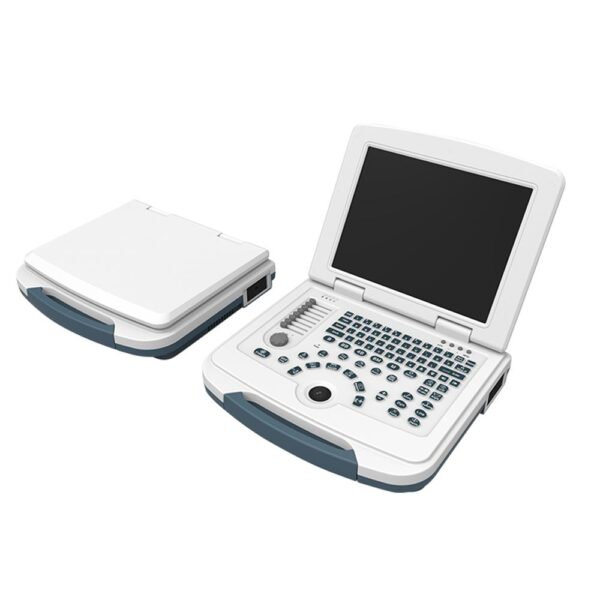

DW-580 B/W Laptop Portable Ultrasound Machine Diagnostic System

DW-580 B/W Laptop Portable Ultrasound Machine Diagnostic System

DW-580 portable ultrasound machine is mainly used in the abdomen, Urology, Obstetrics and Gynecology, pediatrics, etc. All digital ultrasonic diagnostic instruments of this portable ultrasound machine come with high definition and rich function. The image is clear, easy to operate, and strong in endurance. It has great superiority in consultation in cities, townships, and outdoor environments. A variety of charging methods ensure more consultation in different environments.

Medwish supplies ultrasound machines for sale from experienced ultrasound machine suppliers and manufacturers, including portable ultrasound machines and trolley ultrasound machines at wholesale prices. DW-580 portable ultrasound machine is the best seller and cost-effective ultrasound machine for general medical uses. You can get a free quotation about portable ultrasound machines for your hospital or clinics from Medwish local agents right now!

Specification

1. 3-4 hours extra long standby time

2. 12.1 inch LCD

3. Powerful image post-processing functions

4. The first-class digital imaging technology, the image is clearer

5. DBF all digital beamforming

6. DRF real-time dynamic reception of focus by point by point

7. DRA real-time dynamic sound velocity change

8. THI tissue harmonic imaging

9. RDA real-time dynamic aperture imaging

10. DFS numerical control dynamic frequency scanning

11. RDF real-time dynamic filtering

12. A stable and concise operating platform

13. Backlight silicone keyboard, more comfortable and wearable, darkroom use no longer worry

14. Intelligent menu, human-computer dialogue is easy and quick

15. Shows two puncture guidelines, adjustable angles, and positions.

16. The multiple rates show that the diagnosis is more accurate.

17. External USB storage, image uploading more convenient

18. Large volume movie playback, image automatic circulation demonstration

19. Abundant measurement functions: distance, circumference, area, volume, obstetric table, heart software package, etc.

* Performance introduction

1. Display: 12.1 inches LCD medical display

2. Scanning mode: convex matrix / linear array / micro convex

3. Probe interface: Standard 1, 2 (optional), automatic identification function, support multiple probe work.

4. Interface: Chinese/English/Russian/Spanish/French/Arabic/Vietnamese/Portuguese/Indonesian

5. Display mode: B, B+B, 4B, B+M, M

6. Electron focusing: four-segment electron focusing

7. Postural markers: 97 species

8. Optional Probe

3.5MHz Convex Probe: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5.0MHz

5.0MHz Micro Convex probe: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz

6.5MHz Trans vaginal probe: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz

7.5MHz Linear probe & Rectal Probe: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz

9. Image mirroring: upper and lower mirrors, left and right mirrors, black and white flip,

in any mode, can be mirrored conversion, operation

10. The image can be rotated at 0 degrees, 90 degrees, 180 degrees, 270 degrees, and 360 degrees.

11. Measurements: distance, circumference, area, volume, heart rate,

gestational age (BPD, GS, CRL, FL, HC, AC, EDD, AFI) and expected date of birth, fetal weight display and so on.

12. The function software package and measurement method can be selected through the trackball cursor.

13. For angle measurement, you can intuitively see the angle and length of the angle.

14. Have histogram function

15. Have depth measurement function

16. It has 16 obstetric measurement packages and has a fetal growth curve function.

17. In any imaging mode, the data can be measured in real-time

18. Automatic memory and generative function of obstetric data

19. Character display: date, clock, name, gender, age, doctor, hospital, annotation (full-screen character editing)

20. One key out of the patient information entry function

21. Movie playback: 512 frames, continuous playback, or one-by-one view.

22. Permanent storage: built-in 8G memory, more than 4000, supporting U disk storage (available for storage).

23. Single memory image time is less than 6 seconds

24. A key to find saved images, can be found by the date named folder quickly found and a key export.

25 Grayscale: 256 level

26. With the function of puncture and guidance, the angle and position of the two puncture lines can be adjusted visually.

27. Lithotripsy positioning, the dynamic target tracking function

28. Dynamic range: 0-135dB, step 8, with independent buttons, visually adjustable, adjustable cycle.

29. Intelligent TGC control: 8 segments.

30. Total gain: 0-100, step 2

31. Variable aperture, dynamic trace, dynamic digital filtering, etc.

32. 2 stage visible tunable harmonics of tissue

33. 8 kinds of fake color processing, etc.

34. The 4 frames are independent keys, visually adjustable, cycle adjustable,

and can also be changed through the trackball cursor.

35. 6 kinds of line correlation, with independent buttons, visually adjustable,

circular adjustment, or trackball cursor changes.

36. The 8 types of gamma correction are independent keys, visually adjustable,

cycle adjustable, and can also be changed through the trackball cursor.

37. Edge enhancement 4 level adjustable, with independent buttons, visually adjustable, adjustable cycle, also can be changed through the trackball cursor.

38. The scanning range can be adjusted 4 levels, with independent buttons,

visually adjustable, circular adjustment, and also can be changed by the trackball cursor.

39. Luminance key addition and subtraction enhancement and weakening function

40. Caps and Shift locking functions

41. Blind area: less than 4

42. Maximum display depth: 3.5MHz:307mm    6.5MHz:189mm 7.5MHz:166mm    5.0MHz:205mm

43. Geometric accuracy: transverse less than 5%, longitudinal less than 5%

44. Resolution: the side is less than 2mm, and the axis is less than 1mm

45. Interface: RS-232 interface, VGA interface, VIDEO interface, USB interface 2, DICOM

46. Display rate: 6 display modes; lesion diagnosis is more accurate.

When it is above 1.5 and over 1.8, the depth can be enhanced.

47. Starting time is less than 10 seconds

48. Built-in 8800 Ma lithium battery

49. Power indicator light and charging indicator

50. Net weight 4.7KG

51. The button has a buzzing sound, but open/close

52. Formulae of fast data measurement

53. You can quickly set time, name, and other editors through the trackball and keyboard.

* Accessories: probe interface development dock; ultrasonic imaging workstation; portable trolley.

* Other

1. Medical device quality management system (ISO13485) certification

2. Equipment inspection report

3. EC Authentication

4. Two years of quality assurance

* Packing Details:

Metal case package

Size: 47*22*40cm

N.W.: 4.7 kgs; G.W.: 9.5 kgs
