Description
Model:DW-370
Brand:–
Country of origin:–

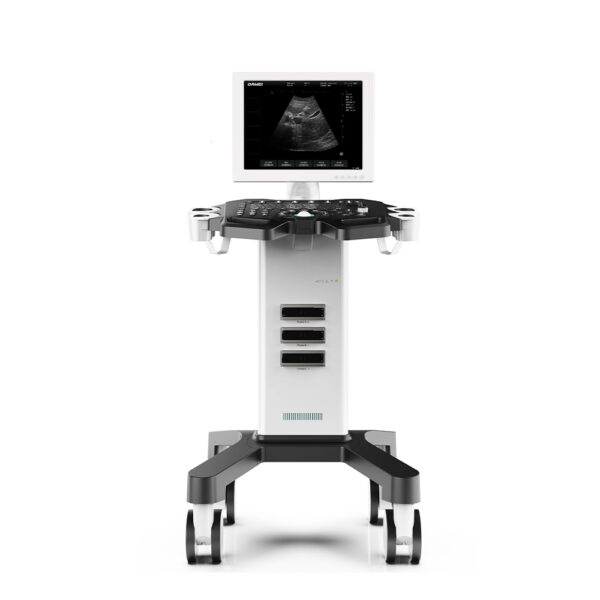

DW-370 Full-Digital Trolley B/W Ultrasound System
Specification:
| 1、 | Description of equipment: DW-370 Full-Digital Trolley B/W Ultrasound System is mainly used in the abdomen, Urology, Obstetrics and Gynecology, blood vessel, etc. |
| 2、 | Functional characteristics |
| 2.1 | High definition and multifunctional trolley type full digital ultrasonic diagnostic apparatus |
| 2.2 | The image is clear and the operation is convenient |
| 2.3 | 15 inch LCD |
| 2.4 | Powerful image post-processing functions |
| 2.5 | The first-class digital imaging technology, the image is clearer |
| 2.6 | DBF all digital beam-forming |
| 2.7 | DRF real-time dynamic reception of focus by point by point |
| 2.8 | DRA real-time dynamic sound velocity change |
| 2.9 | THI tissue harmonic imaging |
| 2.1 | RDA real-time dynamic aperture imaging |
| 2.11 | DFS numerical control dynamic frequency scanning |
| 2.12 | RDF real-time dynamic filtering |
| 2.13 | A stable and concise operating system |
| 2.14 | Backlight silicone keyboard, more comfortable and wearable, darkroom use no longer worry |
| 2.15 | Intelligent menu, human-computer dialogue is easy and quick |
| 2.16 | Shows two puncture guidelines, adjustable angles, and positions. |
| 2.17 | The multiple rates shows that the diagnosis is more accurate. |
| 2.18 | External USB storage, image uploading more convenient |
| 2.19 | Large volume movie playback, image automatic circulation demonstration |
| 2.2 | Abundant measurement functions: distance, circumference, area, volume, obstetric table, heart software package, etc. |
| 3、 | Performance introduction |
| 3.1 | Display: 15 inches LCD medical display |
| 3.2 | Scanning mode: convex matrix / linear array / micro convex |
| 3.3 | Probe interface: 3, with automatic identification function to support multiple probes. |
| 3.4 | Interface: Chinese/ English/ Russian/ Spanish/ French/ Arabic/ Vietnamese/ Portuguese/ Indonesian |
| 3.5 | Display mode: B, B+B, 4B, B+M, M |
| 3.6 | Electron focusing: four-segment electron focusing |
| 3.7 | Postural markers: 97 species |
| 3.8 | 3.5MHz Convex Probe: 2.0MHz, 2.5MHz, 3.5MHz, 4.0MHz, 5.0MHz 5.0MHz Micro Convex probe: 4.0MHz, 4.5MHz, 5.0MHz,6.5MHz, 7.0MHz 6.5MHz Trans vaginal probe: 5.0MHz, 5.5MHz, 6.5MHz, 7.5MHz, 8.5MHz 7.5MHz Linear probe & Rectal Probe: 5.5MHz, 6.5MHz, 7.0MHz, 7.5MHz, 9.0MHz |
| 3.9 | Image mirroring: upper and lower mirrors, left and right mirrors, black and white flip, in any mode can be mirrored conversion, operation |
| 3.1 | The image can be rotated at 0 degrees, 90 degrees, 180 degrees, 270 degrees, and 360 degrees. |
| 3.11 | Measurements: distance, circumference, area, volume, heart rate, gestational age (BPD, GS, CRL, FL, HC, AC, EDD, AFI) and expected date of birth, fetal weight display and so on. |
| 3.12 | The function software package and measurement method can be selected through the trackball cursor. |
| 3.13 | For angle measurement, you can intuitively see the angle and length of the angle. |
| 3.14 | Have histogram function |
| 3.15 | Have depth measurement function |
| 3.16 | It has 20 obstetric measurement packages and has fetal growth curve function. |
| 3.17 | In any imaging mode, the data can be measured in real-time |
| 3.18 | Automatic memory and generative function of obstetric data |
| 3.19 | Character display: date, clock, name, sex, age, doctor, hospital, annotation (full-screen character editing) (a mixed editor for letters, numbers, punctuation, and arrows) |
| 3.2 | One key out of patient information entry function |
| 3.21 | Movie playback: 512 frames, continuous playback or one-by-one view. |
| 3.22 | Permanent storage: built-in 8G memory, more than 4000, supporting U disk storage (available for storage). |
| 3.23 | Single memory image time is less than 3 seconds |
| 3.24 | A key to find saved images, can be found by the date named folder quickly found and a key export. |
| 3.25 | Grayscale: 256 level |
| 3.26 | With the function of puncture and guidance, the angle and position of the two puncture lines can be adjusted visually. |
| 3.27 | Lithotripsy positioning, the dynamic target tracking function |
| 3.28 | Dynamic range: 0-135dB, step 8, with independent buttons, visually adjustable, adjustable cycle. |
| 3.29 | Intelligent TGC control: 8 segments. |
| 3.3 | Total gain: 0-100, step 2 |
| 3.31 | Variable aperture, dynamic trace, dynamic digital filtering, etc. |
| 3.32 | 2 stage visible tunable harmonics of tissue |
| 3.33 | 8 kinds of fake color processing, etc. |
| 3.34 | The 4 frames are independent keys, visually adjustable, cycle adjustable, and can also be changed through the track ball cursor. |
| 3.35 | 6 kinds of line correlation, with independent buttons, visually adjustable, circular adjustment, or track ball cursor changes. |
| 3.36 | The 8 types of gamma correction are independent keys, visually adjustable, cycle adjustable, and can also be changed through the trackball cursor. |
| 3.37 | Edge enhancement 4 level adjustable, with independent buttons, visually adjustable, adjustable cycle, also can be changed through the trackball cursor. |
| 3.38 | The scanning range can be adjusted 4 levels, with independent buttons, visually adjustable, circular adjustment, and also can be changed by the trackball cursor. |
| 3.39 | Luminance key addition and subtraction enhancement and weakening function |
| 3.4 | Caps and Shift locking functions |
| 3.41 | Blind area: less than 4 |
| 3.42 | Maximum display depth: 3.5MHz:126-307mm 6.5MHz:189mm 7.5MHz:40-166mm 5.0MHz:205mm |
| 3.43 | Geometric accuracy: transverse less than 5%, longitudinal less than 5% |
| 3.44 | Resolution: the side is less than 2mm, and the axis is less than 1mm |
| 3.45 | Interface: RS-232 interface, VGA interface, VIDEO interface, USB interface 2, DICOM |
| 3.46 | Display rate: 6 display modes; lesion diagnosis is more accurate. In the case of x 1.5 and X 1.8, the display of depth can be raised |
| 3.47 | Starting time is less than 7 seconds |
| 3.48 | The button has a buzzing sound, but open/close |
| 3.49 | Formulae of fast data measurement |
| 3.5 | You can quickly set time, name and other editors through the track ball and keyboard. |
| 4 | Accessories: ultrasonic imaging workstation |
| 5 | Other |
| 5.1 | Medical device quality management system (ISO13485) certification |
| 5.2 | Equipment inspection report |
| 5.3 | EC Authentication |
| 5.4 | Two years of quality assurance |
Packing Details:
Double paper carton Size: 85*65*99cm
N.W.: 26.5 kgs
G.W.: 40.5 kgs
