Description
Model:MYXF-218
Brand:–
Country of origin:–

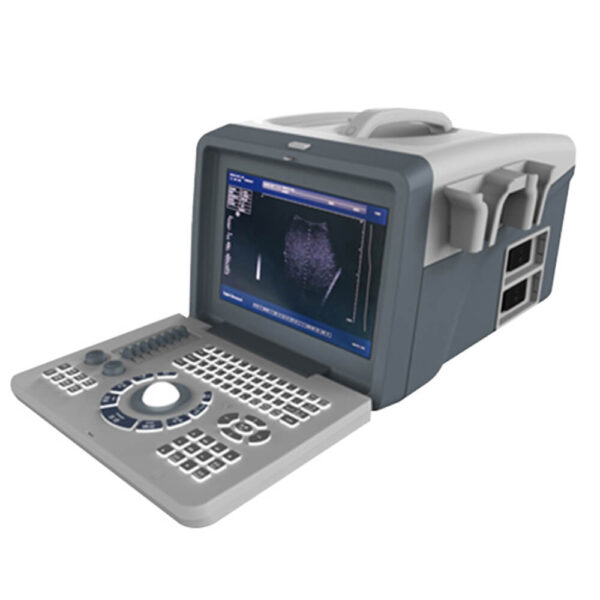

Digital LED Portable Diagnostic Ultrasound Machine MYXF-218
Specification:
Probe: Automatic Identification
Screen: 10″ LED
Focuses: 4 Section Dynamic Electric Focusing; Dual encoder adjusting
Imagine Processing :dynamic Filter; Edge Enhancement;Digital spatiotemporal filtering; 8 Gama correction; Line Correction; Frame Correction;
Point Correction. linear interpolation.
64 Body marks;
Storage: 128 permanent storage; Automatic Report Page
Cine loop: 256 cine loop or single image browsing
Ports: SVGA video output; PAL; USB
Optional: 6.5Mhz Transvaginal probe; 7.5Mhz Linear/rectal probe; video printer, Ultrasound workstation
| Main Feature | Portable 10.4″ LED Backlight Key |
| Main Parameter | 1. Display modes: B, B/B, 4B, B+M, M. 2. Grayscale: 256 levels. 3. Dynamic range: 0~120dB adjustable. 4. External LED displays to have 16 kinds of pseudo colors. 5. Permanent storage: 128 images. 6. Capacity cine loop: the real-time display of 256 consecutive images which are memorized successively. 7. Gain control: 8 segments of TGC and overall gain can be adjusted respectively. 8. Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz – Five periods of frequency conversion; – The frequency range applies 5.5 MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match the high-frequency probe. 9. According to the user’s pattern style preference, the parameter will be set up automatically and saved, Boot defaults this parameter. 10. This default parameter can also be modified in the menu. 11. E-zoom: magnify 2 times of real-time image. 12. Focus position: dynamic electron focusing. 13. γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement, pseudo color processing, etc. |
| Output Interface | 1. USB video output 2. SVGA video output 3. PAL video output |
Packing
500*400*440mm,14kg
