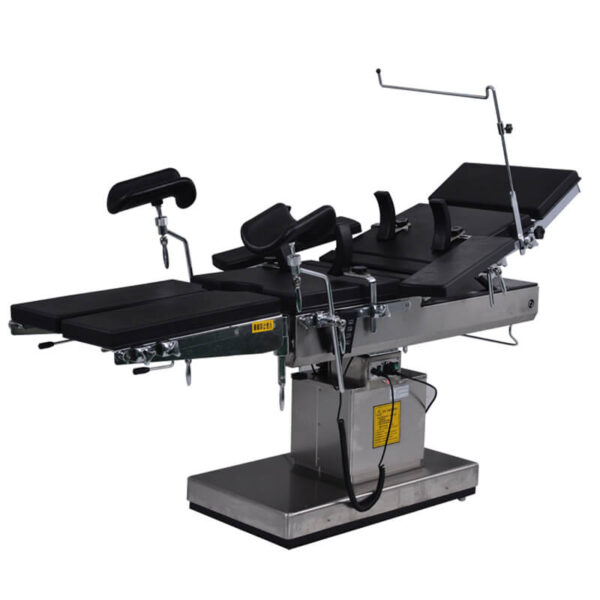

C Arm Electric Operation Tables with X-Ray Examination AG-OT009
AG-OT009 C Arm Electric Operation Table is made up of the tabletop, main part, electric controlling part and accessories, etc. Its raising, lowering, left and right inclining, forward and backward inclining, and forward and backward moving are all driven by the motors.
Medwish supplies wholesale operation tables for sale from experienced medical equipment suppliers and manufacturers, and can also supply different types of operation tables, including Electro-Hydraulic Operating Tables , Electric Operating Tables , Hydraulic Operating tables , Anatomy tables , and Surgical frames , come to get more operating table prices for your hospital or business in bulk.
Operation Table Structure
1. The tabletop is made up of a head section, back section, a seat section, leg section, foot section, and kidney bridge.
The head section and the foot section can all be disassembled. The head section can be raised or lowered from the horizontal. The leg section can be lowered from the horizontal and opened.
2. Tabletop is made of high strength composite board, thus an X-ray examination of can be carried out on it.
3. The main part includes a rotary frame, lateral tilt arrangements, Trendelenburg and reversed Trendelenburg arrangements, ascending and descending arrangements, and the base. The lateral tilt arrangements Trendelenburg and reversed Trendelenburg arrangements can drive the rotary frames to carry out the lateral tilt, Trendelenburg, and reversed Trendelenburg movements.
4. The electric controlling part is made up of a steady power supply, a controlling push-button container.
Specification
Safe working load: 135kg
|
Dimension of tabletop |
Overall Size: 210cm*50cm Height: 75-100 cm Adjust. 25cm |
|
Head Section |
25×50cm |
|
Back Section |
54.5×50cm |
|
Kidney Bridge |
7.5×50cm |
|
Seat section |
45×50cm |
|
Leg Section |
60×24cm |
|
Foot Section |
18×27.3cm |
|
Reversed Trendelenburg |
≥25° |
|
Trendelenburg |
≥25° |
|
Lateral Tilt |
≥15° |
|
Head Section |
45°- 90° |
|
Back Section Raised from the horizontal |
≥45° |
|
Kidney Bridge Elevated |
≥80mm |
|
Leg Section Lowered from the horizontal |
≥90° |
|
Leg section opened |
≥90° |
|
Backward and Forward Movements |
≥40cm |
|
Lifting speed |
4~16mm/s |
|
Device safety sort |
IB |
|
Ingress protection |
IPX4 |
|
Power customized |
Internal power supply (DC): 24V Battery capacity: ≥ 2.4AH |
Operation Table Accessories
Anesthesia screen frame: 1 set
Body strap: 1 pc
Lateral support: 1 pair
Shoulder holder:1 pair
Leg holder: 1 pair
Clamp:1 set
Armrest: 1 pair
Hand control: 1 pc
Find more details about how to buy a complete set of operating theater equipment for hospital turnkey projects or hospital solution projects , more details about Operating Table , Surgical Light , Surgical Pendant , Anesthesia Machine , Medical Ventilator , Oxygen Concentrator , Patient Monitor , Stainless Steel Products , Electrotome , and so on.
140*77*100 285kg
