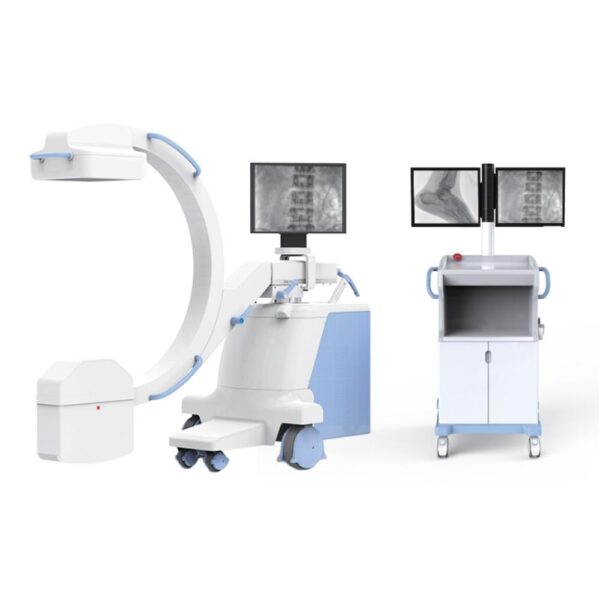

AG-D118F High Frequency Mobile Digital FPD C-arm System

AG-D118F High-Frequency Mobile Digital FPD C-arm System



Specification:



Packing Detail: 2440*1100*1420mm,   NW: 440kg  GW: 575kg



I. Usage:



Orthopedics, General Surgery, Pain management, Traumatology and so on



Surgery: Removing foreign body, implanting pace maker, partial radiography, local photography and other surgeries



II. Features



1. Using the latest dynamic flat-panel detector (large field of view, high resolution,



high dynamic range, low noise, no distortion, compact and lightweight).



2. 9’’ × 9’’ effective imaging area can meet various fluoroscopy clinical demands of common parts.



3. Image processing software is based on GPU, the real-time image processing platform.



It’s an enhancement processing technology of image multi-resolution analysis, different parts of



different image processing, and meeting the diverse demands of customers accurately.



4. Grayscale LCD display is for option with higher resolution and excellent image quality.



5. Dynamic flat panel detector connected with Gigabit network lets image acquisition transport



security and fast. Dicom3.0 is easy to join PACS, transport, and print.



6. Self-development of high-frequency and high-voltage generators achieved high-frequency pulse



fluoroscopy to reduce the dose.



7. The human-graphic touch screen control interface can control dose intelligently and reduce the



cumbersome operation. It’s suitable for surgery demand.



8. According to clinical demands, we can preset multi-site, multi-position, multi-body parameters of



adults, children, and other human characteristics. It’s easy to operate.



9. ABS



10. Multiple automatic protection and fault code prompt function make maintenance more convenient.



11. New C-arm mainframe is lightweight and smart for various surgical demands.



III. Configuration





IV. Performance and Parameter



Fluoroscopy/ Photography





X-ray Tube



X-ray Tube Special for High Frequency



1. Fixed anode Dual-focus: 0.3/ 1.5mm2. Angle: 15°3. Anode Thermal Capacity: 35kJ4. X-ray tube Thermal Capacity: 650kJ



Imaging System



Dynamic Flat panel detector



1. Detector Type: Amorphous Silicon



2. Detector scintillator type: cesium iodide



3. Size: 9’’ *9’’ (about 21cm × 21cm)



4. Pixel: 1344×1344



5. Grayscale: 16 bits



6. Pixel size: 154 um



7. Ultimate spatial resolution: 3.2LP / mm



8. Grayscale: 16 bits



9. Pixel size: 154 um



10. Ultimate spatial resolution: 3.2LP / mm



Monitor: 19’’ LCD monitor *3



Work Station Software



1) Registration: registration, Save, inquiry, Worklist



2) Acquisition: start a collection, prepare video, reset, horizontal mirror, vertical mirror,



window adjustment, magnifying glass, negative image, recursive noise reduction



3) Processing: four windows, nine windows, sharpening, horizontal mirror, vertical mirror,



text annotation, length measurement



4) Report: Save, preview, expert template



5) Workstation software: Non-destructive storage, multiple display, image W / L real-time adjustment,



grayscale conversion, ROI balance, GAMMA correction, flip, noise reduction, enhancement, smoothing,



sharpening, compression,zooming, measuring, marking, graphic report typography, Expert templates,



Dicom image sending, Dicom image printing, movie playback, image burning, worklist registration, etc.



6) Dicom 3.0



7) Image sharpness A) Grayscale: ≥ 17B) Line resolution: ≥ 2.5LP / mm



Structural performance



C-arm(Counterbalance)



1.Electric Ascending and Descending of pillar movement: 400mm



2. Forward and Backward Movement: 200mm



3. Revolution around Horizontal Axis:  ±180°



4. Revolution around Vertical Axis:  ±15°



5. Slip on orbit: 135°



SID: 1000mm     Opening: 800mm    Arc depth: 660mm

Packing:

2505*1200*1460cm 580KG
