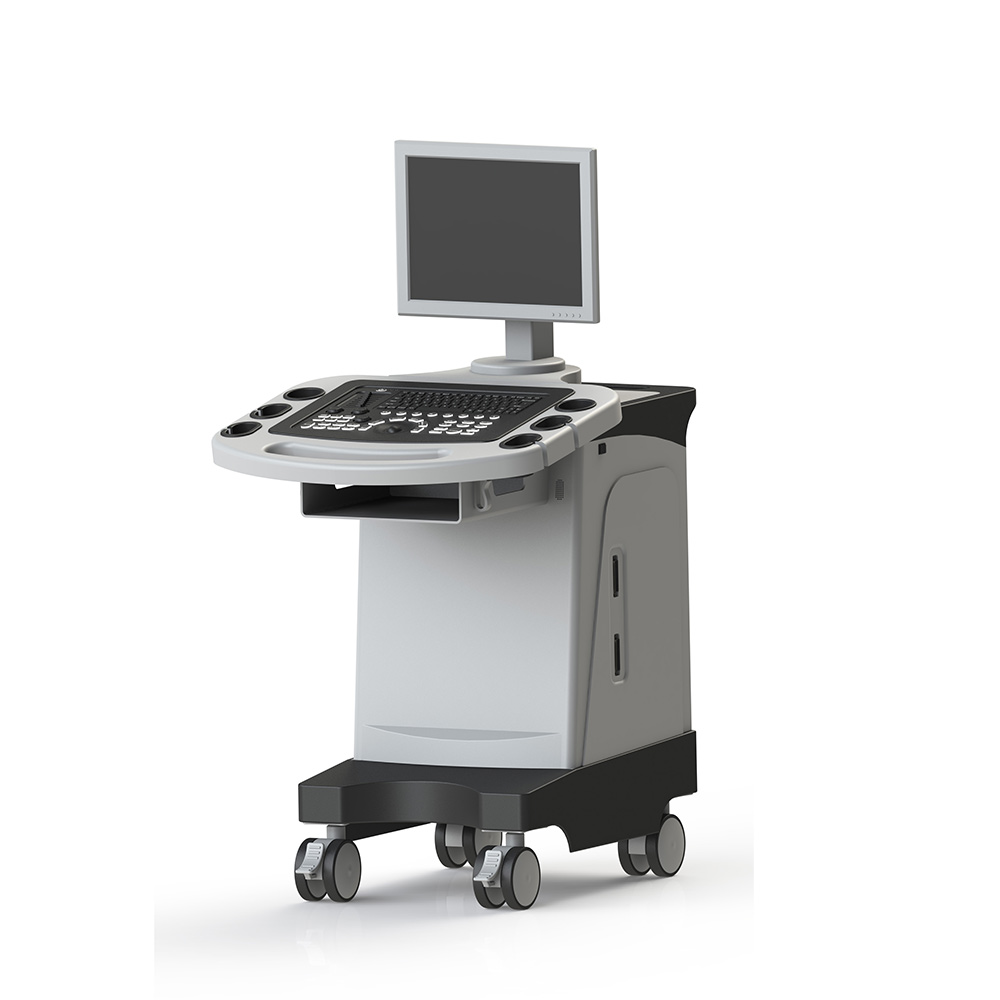

Black And White Ultrasound Machine DW-350

Black And White Ultrasound Machine DW-350

DW-350 Trolley Black And White Ultrasound Machine is mainly used in the abdomen, Urology, Obstetrics and Gynecology, blood vessel, etc. This black and white ultrasound machine use high-frequency sound waves to generate images of organs and structures inside the human body with high definition, the image is clear and the operation is convenient with the powerful image post-processing functions

Introduction

The black and white ultrasound machine is a top-of-the-line product that offers sharper and continuous edges, smooth uniform tissues, and cleaner ‘no echo areas.’

It also supports various pseudo-color modes for better visual clarity. The data management system is efficient and the USB interface allows for real-time image storage. The product is ideal for use in a wide range of clinical applications.

The black and white ultrasound machine uses the latest imaging technology to provide clear images. DBF all digital beam-forming, DRF real-time dynamic reception of focus by point by point, DRA real-time dynamic sound velocity change, THI tissue harmonic imaging, RDA real-time dynamic aperture imaging, DFS numerical control dynamic frequency scanning, RDF real-time dynamic filtering make it possible to view even the smallest details. The stable and concise operating system with a backlight silicone keyboard makes it easy to use even in dark rooms.

Specification

– 15-inch HD color LCD display with a wide-angle view

– Rich clinical measurement package, including

General measurement GYN OB measurement Cardiac measurement

– Probe frequency from 3.5MHz-9.5MHz

– THI and Histogram function

– Support OB Report

– Maximum 655 frames of video playback, image automatic loop demonstration

– 17-lever local zoom can be used in real-time

– 2 Active probe ports

– Scanning mode: convex matrix / linear array / micro convex

– Probe interface: 2, with automatic identification function to support multiple probes.

– Interface: Chinese/English/Russian/Spanish/French/Arabic/Vietnamese/Portuguese/Indonesian

– Display mode: B, B+B, 4B, B+M, M

– Electron focusing: four-segment electron focusing

– Postural markers: 97 species

Probes

1. Convex probe

2. Linear probe

3. Transvaginal probe

4. Micro-convex probe

5. Rectal probe

More Specification

3.1. Image mirroring: upper and lower mirrors, left and right mirrors, black and white flip, in any mode, can be mirrored conversion, operation

3.2. The image can be rotated at 0°, 90°, 180°, 270°, and 360°.

3.3. Measurements: distance, circumference, area, volume, heart rate, gestational age (BPD, GS, CRL, FL, HC, AC, EDD, AFI) and expected date of birth, fetal weight display, and so on.

3.4. The function software package and measurement method can be selected through the trackball cursor.

3.5. For angle measurement, you can intuitively see the angle and length of the angle.

3.6. Have histogram function

3.7. Have depth measurement function

3.8. It has 16 obstetric measurement packages and has fetal growth curve function.

3.9. In any imaging mode, the data can be measured in real-time

3.10. Automatic memory and generative function of obstetric data

3.11. Character display: date, clock, name, sex, age, doctor, hospital, annotation (full-screen character editing) (a mixed editor for letters, numbers, punctuation, and arrows)

3.12. One key out of patient information entry function

3.13. Movie playback: 512 frames, continuous playback, or one-by-one view.

3.14. Permanent storage: built-in 8G memory, more than 4000, supporting U disk storage (available for storage).

3.15. Single memory image time is less than 6 seconds

3.16. A key to find saved images can be found by the date named folder quickly found and a key export.

3.17. Grayscale: 256 level

3.18. With the function of puncture and guidance, the angle and position of the two puncture lines can be adjusted visually.

3.19. Lithotripsy positioning, the dynamic target tracking function

3.20. Dynamic range: 0-135dB, step 8, with independent buttons, visually adjustable, adjustable cycle.

3.21. Intelligent TGC control: 8 segments.

3.22. Total gain: 0-100, step 2

3.23. Variable aperture, dynamic trace, dynamic digital filtering, etc.

3.24. 2 stage visible tunable harmonics of tissue

3.25. 8 kinds of fake color processing, etc.

3.26. The 4 frames are independent keys, visually adjustable, cycle adjustable, and can also be changed through the trackball cursor.

3.27. 6 kinds of line correlation, with independent buttons, visually adjustable, circular adjustment, or trackball cursor changes.

3.28. The 8 types of gamma correction are independent keys, visually adjustable, cycle adjustable, and can also be changed through the trackball cursor.

3.29. Edge enhancement 4 level adjustable, with independent buttons, visually adjustable, adjustable cycle, also can be changed through the trackball cursor.

3.30. The scanning range can be adjusted 4 levels, with independent buttons, visually adjustable, circular adjustment, and also can be changed by the trackball cursor.

3.31. Luminance key addition and subtraction enhancement and weakening function

3.32. Caps and Shift locking functions

3.33. Blind area: less than 4

3.34. Maximum display depth:

3.5MHz:126-307mm       6.5MHz:189mm

7.5MHz:40-166mm        5.0MHz:205mm

3.35. Geometric accuracy: transverse less than 5%, longitudinal less than 5%

3.36. Resolution: the side is less than 2mm, and the axis is less than 1mm

3.37. Interface: RS-232 interface, VGA interface, VIDEO interface, USB interface 2, DICOM

3.38. Display rate: 6 display modes; lesion diagnosis is more accurate. In the case of x 1.5 and X 1.8, the display of depth can be raised

3.39. Starting time: ≤10 seconds

3.40. The button has a buzzing sound, but open/close

3.41. Formulae of fast data measurement

3.42. You can quickly set time, name, and other editors through the trackball and keyboard.

4. Accessories: ultrasonic imaging workstation

Black and white ultrasound machine package

Double paper carton Size: 85*65*99cm
N.W.: 26.5 kgs
G.W.: 40.5 kgs
