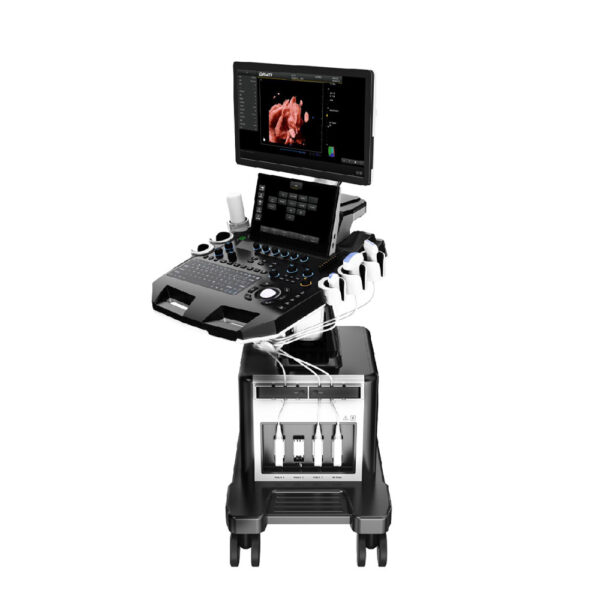

4D Color Ultrasonic Diagnostic Apparatus DW-T30

1.2 Screen Fold-able, panel height adjustable

2. Purpose and applications:

2.1 To meet the basic hospitals in the abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, neonatal, muscle, physical examination and other inspections and diagnosis.

3.2 Pulse Wave Doppler

3.3 Directional Energy Doppler

3.4 Real-time triple synchronization

3.5 Spatial Composite Imaging

3.6 Tissue Harmonic Imaging

3.7 2B/4B Imaging

3.8 Support system languages: Chinese, English, French, Russian, Spanish.

3.9 Standard monitor size: 21.5 inch, high-definition medical grade LCD display, and 13.3 inch touch screen

3.10 Integrated clipboard: display the saved images at the bottom of the screen, which can be directly transferred or deleted

3.11 With on-site upgradeable functions

3.12 Preset conditions: For different inspections, preset inspection conditions for optimized images, reducing adjustments during operation, and commonly required external adjustments and combined adjustments

3.13 Support real-time 3D imaging function (3D/4D/5D real skin)

3.14 Probe ports: 4 active

3.15 Trapezoidal Imaging

3.16 One-key auto optimization

Linear probe: 6.0MHz/7.5MHz/8.5MHz/10.0MHz/H10.0MHz, (depth 20-128mm)

Trans-vaginal probe: 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz, (depth 30-156mm)

Phased array probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H3.0MHz/H4.0MHz, (depth 100-244mm)

4D Volume probe: 2.0MHz/3.0MHz/4.5MHz/6.0MHz/H5.0MHz, (depth 30-237mm)

Micro convex probe (R15): 4.0MHz/6.0MHz/7.0MHz/8.0MHz/H8.0Mhz, (depth 30-111mm)

5.2 TGC: 8 segment adjustable

5.3 Dynamic range: 20-280dB, 20 levels visible and adjustable

5.4 Pseudo color: 12 kinds, visible and adjustable

5.5 Sound power:　5%－100%, single step 5%, visible and adjustable

5.6 Body mark: 6 kinds

5.7 Number of focus: max 6

5.8 Gray Scale: 0-7, visible and adjustable

5.9 Filtering: 0-4

5.10 Scanning range: 50%-100%

5.11 Frame related: 0-4, visible and adjustable

5.12 Real-time display of 14 parameters such as sound power, probe frequency, dynamic range, pseudo color, gray scale, etc., which are adjustable

5.13 Scanning line density: high, medium and low adjustable

5.14 Noise reduction: 0-14

5.15 Pseudo-color spectrum: 0-11

5.16 Support frequency compound

6.2 Color frame related: 0-12 levels, visible and adjustable

6.3 Color map: 0-3 levels, visible and adjustable

6.4 Color flip: adjustable

6.5 B/C split screen synchronous display function: available

6.6 Color baseline: 11 levels, visible and adjustable

6.7 Color line density: high and low adjustable

6.8 Wall filter: 0-5 level adjustable

7.2 Sampling volume: 0.5mm-20mm visible and adjustable

7.3 Frequency: 2.5MHz and 3.0MHz visible and adjustable

7.4 Baseline: 11 levels adjustable

7.5 Pseudo-color spectrum: 0-5

7.6 Display layout: 4 kinds, visible and adjustable

7.7 Pseudo-color: 6 kinds adjustable

*7.8 Speed scale: 3-2288cm/s

7.9 Spectrum envelope function: real-time automatic spectrum envelope, manual spectrum envelope and other modes are available, the system automatically analyzes and displays: PSV, EDV, RI, PI, S/D, ACC, HR and other data

7.10  Grayscale: 0-7

7.11  Wall filter: 0-12

7.12  Dynamic range: 10-95dB, single step 5

7.13  Noise reduction: 0-60

7.14  Volume: 0-100

8.2 Display layout: support “double frame”, “four frame”, “single frame” image display

8.3 Reconstruction modes: RealSkin, surface, Max, Min, XRax five reconstruction modes

8.4 Pseudo-color display: support 0-7 level adjustment

8.5 Image magnification: support 5 levels

8.6 Contrast: 0%-100%

8.7 Threshold: 0%-100%

8.8 Smooth: 3 levels adjustable

8.9 Pseudo-color: 7 levels adjustable

8.10 X-axis, Y-axis, and Z-axis rotation support adjustable

8.11 Brightness: 0%-100%

9.2 Display layout: support “double frame”, “four frame”, “single frame” image display

9.3 Reconstruction modes: RealSkin, surface, Max, Min, XRax five reconstruction modes

9.4 Pseudo-color display: 0-7 levels adjustable

9.5 Image magnification: 5 levels

9.6 Contrast: 0%-100%

9.7 Threshold: 0%-100%

9.8 Smooth: 3 levels adjustable

9.9 Pseudo-color:7 levels adjustable

9.10 X-axis, Y-axis, and Z-axis rotation adjustable

9.11 Line density: 2 levels adjustable

10.2 Obstetric measurement: weight measurement formula: 13 kinds for option

10.3 The color and type of the measuring line can be adjusted(including the activation color and the completion color)

10.4 The display position and font size of the measurement results can be adjusted

10.5 Measurement packages: abdomen, obstetrics, urology, etc.

11.2 Cine loop: 600 frames

11.3 Built-in file information management system: with record number, name, inspection number, inspection date, etc., and can search and manage by number, inspection number, name, etc.

11.4 Report types: 17 kinds

11.5 One-key quick report graphic management

4*USB ports, 1*Video, 1*S-Video, 1*DVI, 1*HDMI, 1*RJ-45

13.1 Color Ultrasonic Diagnostic Apparatus host *1 set

13.2 Probe options:

Convex probe

linear probe

Micro-convex probe R20

Phased array probe

Trans-vaginal probe

4D volume probe

13.3 Optional accessories: Thermal printer, puncture guide frame, gel warmer etc.

13.4 Standard warranty period: 2 years, including machine and probes

13.5 Life-long maintenance after the expiration of the warranty period, and free upgrade and maintenance of the workstation software involved
